PACE

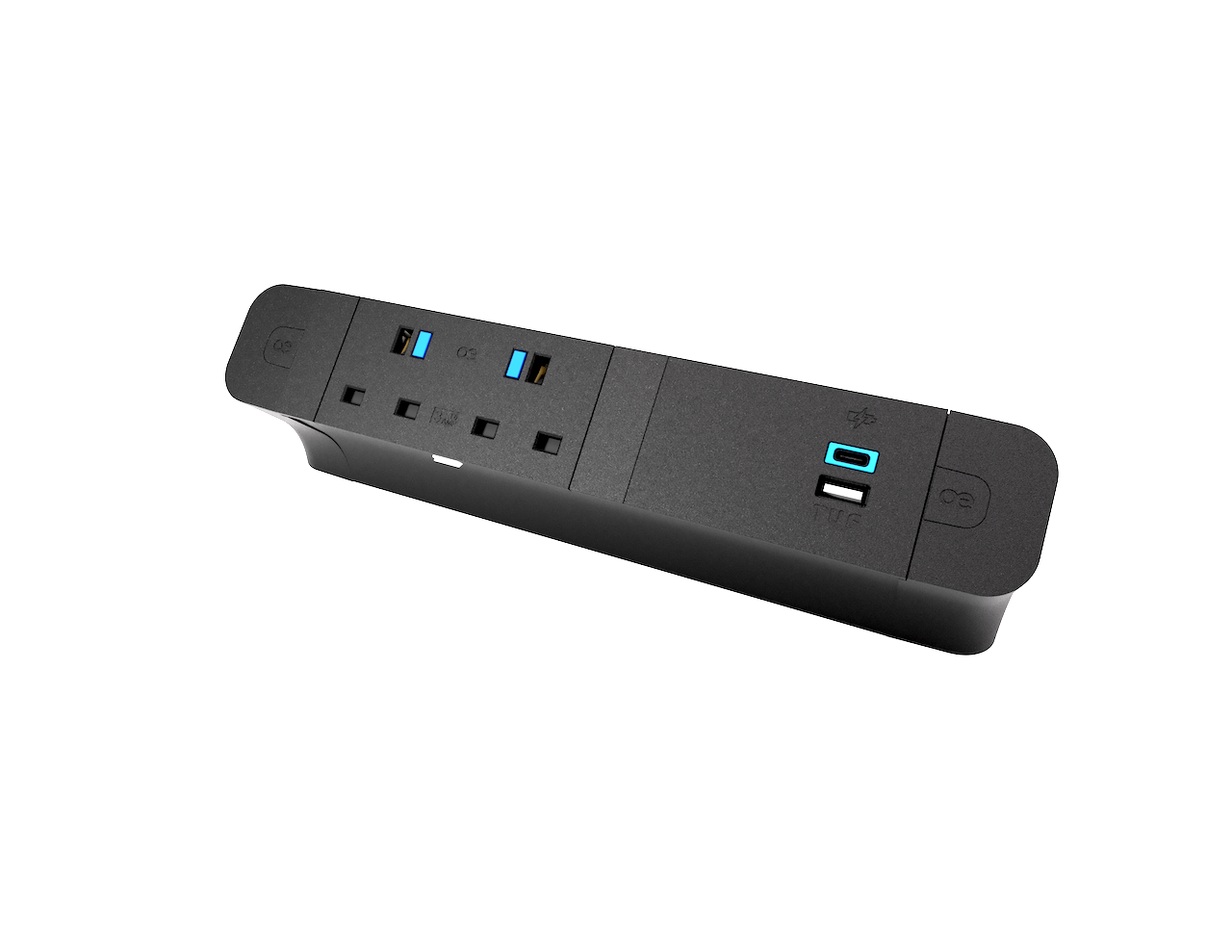

PACE is both durable and functional, combining a high strength powder coated aluminium extrusion with moulded polycarbonate end caps uniquely incorporating a data cable pull through facility. PACE can be specified in all black or all white, either as enclosure only or fully pre-configured with your choice of QIKFIT power, USB charging and Data/AV modules. A key advantage of PACE over conventional desk top solutions is that the QIKFIT modules can easily be changed on site, either to new configurations to suit evolving user requirements, or to replace a damaged socket.

Each unit comes with a clamp bracket and a 0.8m cable to GST18i3 connector. Extend this by simply connecting a starter cable to a 13A plug

SKU N/A Category On Surface Tag workstation-on Brand: QIKFIT

Colour

Configuration

Clear

Don't forget to add cables to your quote

essential addition

If you require quantities of 250 and above, please contact us directly for prices and discounts

Technical Information

Configuration
PACE 25 – Can be fitted with the following QikFit module combinations:
• 1 x QikFit 2G power module (+QF3 Spacer) or
• 1 x QiKFit TUF plus 1 x QF5 Data/AV module or
• 5 x QF5 data AV modules*
PACE 40 – Can be fitted with the following QikFit module combinations:
• 1 x QikFit 2G power module plus 3 x QF5 Data/AV modules or
• 1 x QikFit 2G power module plus 1 x QikFit TUF module or
• 8 x QF5 Data/AV modules*
PACE 60 – Can be fitted with the following QikFit module combinations:
• 1 x QikFit 2G power module plus 7 x QF5 Data/AV modules or
• 2 x QikFit 2G power module** plus 2 x (usable)
QF5 or
• 1 x QikFit 2G power, 1 x QikFit TUF modules plus 4
x QF5 Data/AV modules
In all versions, the right hand end-cap can accept a pull through data lead, as well as an additional Keystone
coupler in the end-caps
* Special cable exit feature must be requested
** Locking clips must be removed before assembly
Construction
Body: Powder coated aluminium extrusion
Inner end caps: Fire retardant polycarbonate
Outer end caps: Fire retardant polycarbonate
Colour Options
White RAL 9003 or black extrusion and outer end caps
Mounting
PACE desk edge fabricated steel bracket with 2 x fixing bolts or PACE Top Fix Bracket
