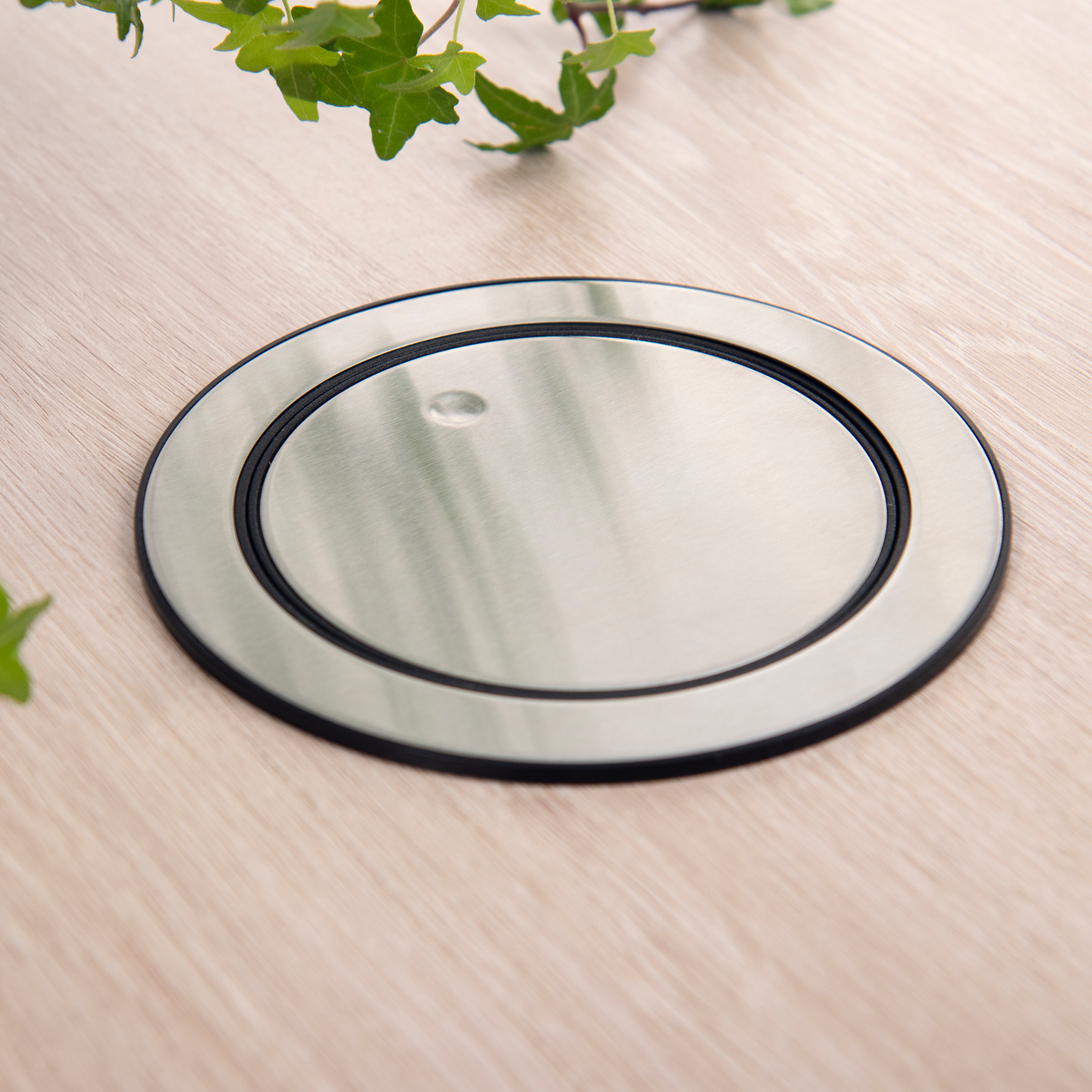

PANDORA is an innovative solution for bringing power, USB, and data/AV connectivity to breakout and meeting areas with exceptional functionality and style. Fitting seamlessly into a 128mm+ grommet hole, PANDORA offers a near-flush profile when closed and additional wireless charging when you specify PANDOR-ARC. The unique rotating feature of PANDORA allows for 360° socket access, making it both convenient and user-friendly.
Each unit comes with a black 0.8m cable to GST18i3 connector. Extend this by simply connecting a starter cable to a 13A plug
If you require quantities of 250 and above, please contact us directly for prices and discounts
Configuration

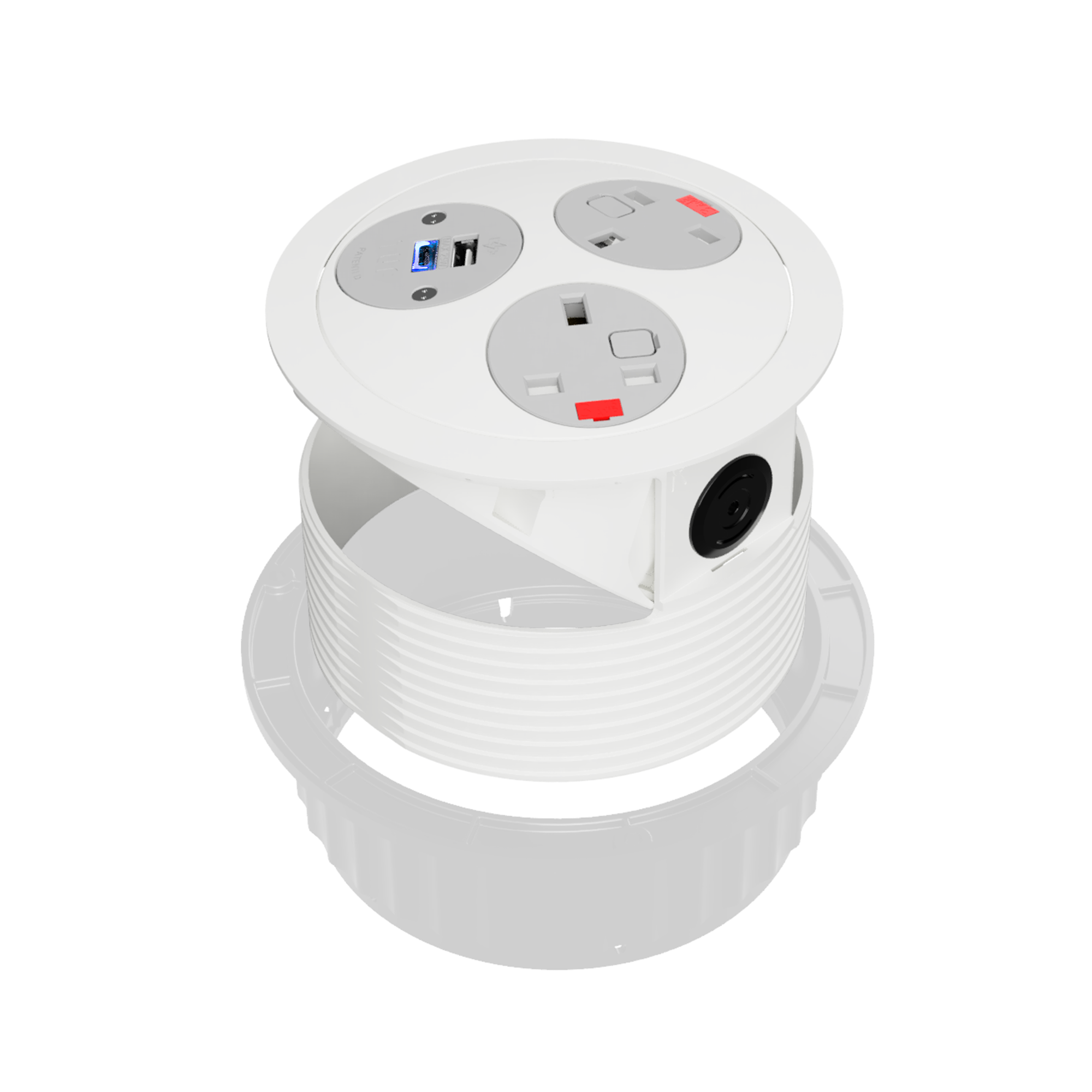

PANDORA’s three socket apertures may be configured with our class-leading 25W USB Fast charger (TUF), UK Mains power (3.15A fused), or HDMI. For high-power USB charging, the TUF-HP is also available, delivering up to 72W of power.
Construction
PANDORA is constructed from fire-retardant Polycarbonate and ABS, with a Nylon 6 fixing nut.
Colours
Bevelled – Black body with black sockets.
Bezelled – Black with black sockets or white with grey sockets.
Fusing
(to enable compliance to BS6396)
UK sockets can be specified with 5 x 20mm anti-surge ceramic fuses, with colour-coded fuse clips to denote the rating (3.15A/5A)
Quality and Testing
All PANDORA units are manufactured using ISO9001 quality-controlled components and practices and are 100% tested before dispatch
Visual: Configuration and appearance.
Power sockets
Continuity, polarity, insulation & earth
USB charger: Output voltage and resistance
Data & AV: All sockets continuity tested with batch performance testing “we test every pin in every socket in every module”.
Soft Wiring (power)
Hardwired to either a mains AC plug, or a male Wieland GST connector for “soft wiring” e.g. connection to an under-desk power module or direct to a floor socket via a starter cable.
