Configuration

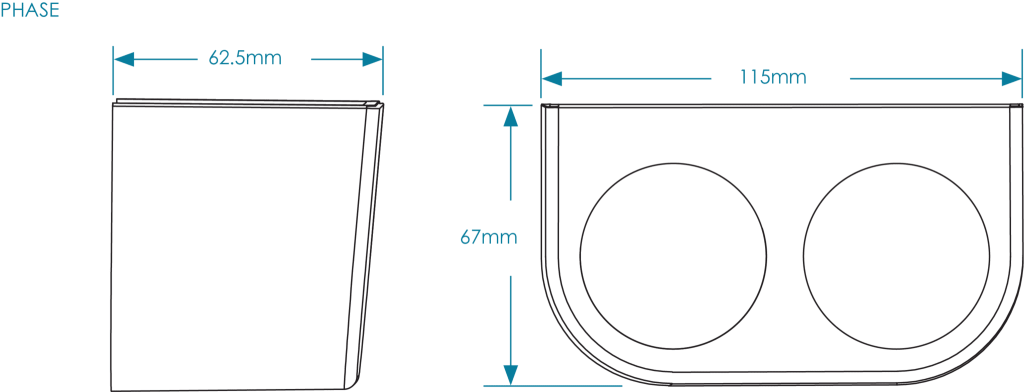

The PHASE double socket apertures may be configured with our cl) or an AC power socket from the OE 42mm modular range. PHASE can also be configured with data and/or AV sockets. Through back or through base power and data cable entry
options.

Construction
PHASE comprises high-strength and flame-retardant polycarbonate main body and back mouldings, plus a nylon slide-on/clip-on universal mounting bracket. OE snap-in “42mm” modular power socket /TUF fascias are moulded from polycarbonate. PHASE can also be supplied with custom metal fixings, e.g. to attach to steel sections in soft furnishing.

Colours
Body – black or white
Power socket fascia – black or grey
TUF fascia – black or grey
Data/AV fascia – black or grey
Power cable – white or black

Fusing
(to enable compliance to BS6396)
UK sockets can be specified with 5 x 20mm anti-surge ceramic fuses, with colour-coded fuse clips to denote the rating (3.15A/5A)

Quality and Testing
All PHASE units are manufactured using ISO9001 quality controlled components and practices, and are 100% tested before dispatch
Visual: Configuration and appearance.

Power sockets
Continuity, polarity, insulation & earth
USB charger: Output voltage and resistance
Data & AV: All sockets continuity tested with batch performance testing “we test every pin in every socket in every module”.

Soft Wiring (power)
Hardwired to either a mains AC plug, or a male Wieland GST connector for “soft wiring” e.g. connection to an under-desk power module or direct to a floor socket via a starter cable.
