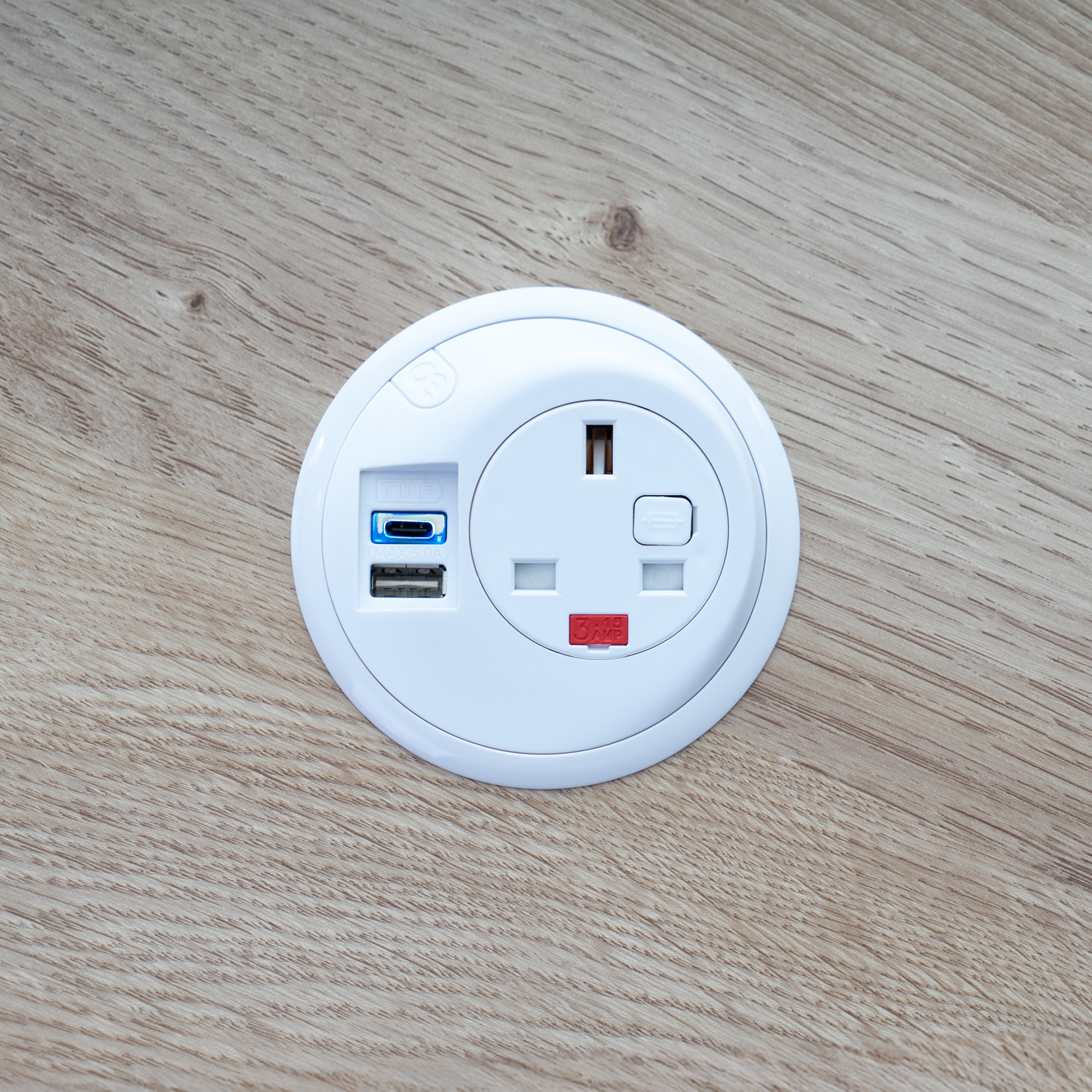

Don’t be fooled by its size – PIXELTUF packs a powerful punch with its ability to accept power and USB to meet all your charging requirements in a compact housing. Fitting into a standard 80mm cut-out without the need for tools, PIXELTUF is suited to installation in a wide range of furniture.
Each unit comes with a black 0.8m cable to GST18i3 connector. Extend this by simply connecting a starter cable to a 13A plug
If you require quantities of 250 and above, please contact us directly for prices and discounts
Configuration

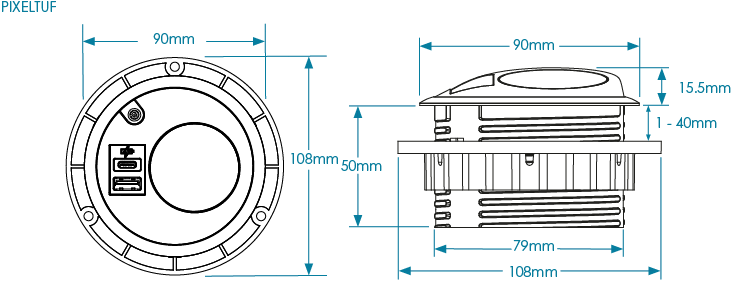

As well as a mains power socket, PIXEL TUF features our class-leading 25W USB Fast charger (TUF) for easy power and charging. PIXELTUF is designed with a sloped surface to aid liquid run-off in the event of a spilt drink and fits into industry-standard 80mm holes in surfaces up to 40mm thick. There is also a knock-out notch should you wish to leave a data or AV cable permanetly accessible.
Construction
PIXEL TUF is constructed from durable polycarbonate.
Colours
Body – black or white
Bezel – Silver as standard, but can be painted in any colour. Price and lead time on application.
Fixing nut – black
Power cable – white or black
Fusing
(to enable compliance with BS6396)
UK sockets can be specified with 5 x 20mm anti-surge ceramic fuses, with colour-coded fuse clips to denote the rating (3.15A/5A)
Quality and Testing
All PIXEL TUF units are manufactured using ISO9001 quality-controlled components and practices and are 100% tested before dispatch
Visual: Configuration and appearance.
Power sockets
Continuity, polarity, insulation & earth
USB charger: Output voltage and resistance
Data & AV: All sockets continuity tested with batch performance testing “we test every pin in every socket in every module”.
Soft Wiring (power)
Hardwired to either a mains AC plug, or a male Wieland GST connector for “soft wiring” e.g. connection to an under-desk power module or direct to a floor socket via a starter cable.
