POWERUNIT

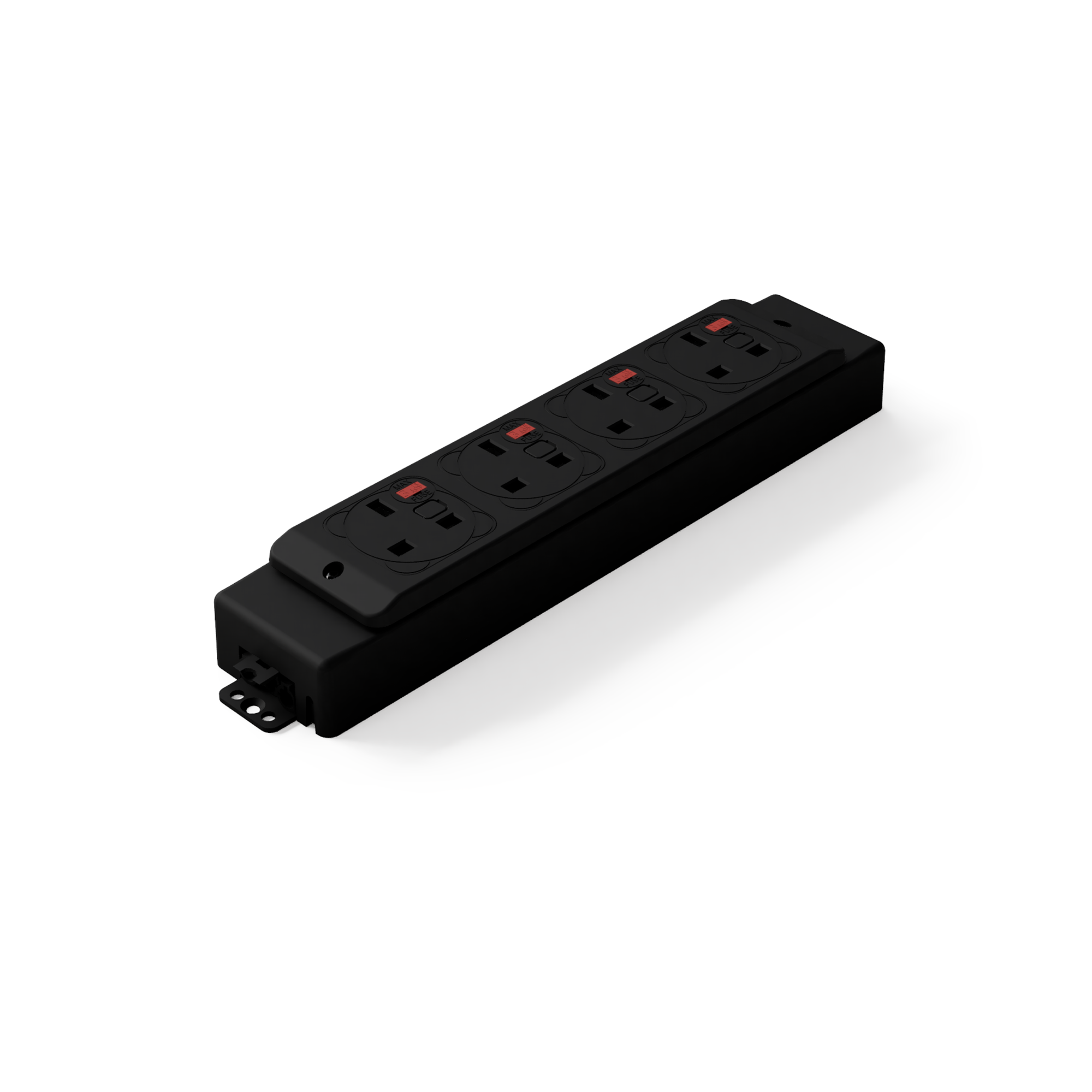

POWERUNIT is a high-quality power and data distribution solution perfect for installation in wood/MDF and steel office screens or under-surface using our bespoke brackets, including mounting clips for compatibility with our QIKTRAY cable management solutions.

POWERUNITS are fitted with GST18i3 male and female connectors and can be fed from a starter cable and connected to other units via interconnector cables

Don't forget to add cables and connectors

SKU N/A Categories Under desk Distribution, Under Surface Tags powerunit, workstation-under

GST 18i3 IN/OUT

Configuration

Clear

Don't forget to add cables to your quote

essential addition

If you require quantities of 250 and above, please contact us directly for prices and discounts

Technical Information

Configuration
POWERUNIT is available in two or three gang units, with provision for mains power, USB Charging, and Data.

Construction
POWERUNIT is constructed from polycarbonate.

Colours
Black only

Fusing
(to enable compliance to BS6396)
UK sockets can be specified with 5 x 20mm anti-surge ceramic fuses, with colour-coded fuse clips to denote the rating (3.15A/5A)

Quality and Testing
All POWERUNIT units are manufactured using ISO9001 quality-controlled components and practices and are 100% tested before dispatch
Visual: Configuration and appearance.

Power sockets
Continuity, polarity, insulation & earth
USB charger: Output voltage and resistance
Data & AV: All sockets continuity tested with batch performance testing “we test every pin in every socket in every module”.

Soft Wiring (power)
POWERUNIT requires a GST18i3 power input. Some configurations have GST18i3 power exit, meaning another POWERUNIT can be linked to it.

Dimensions
