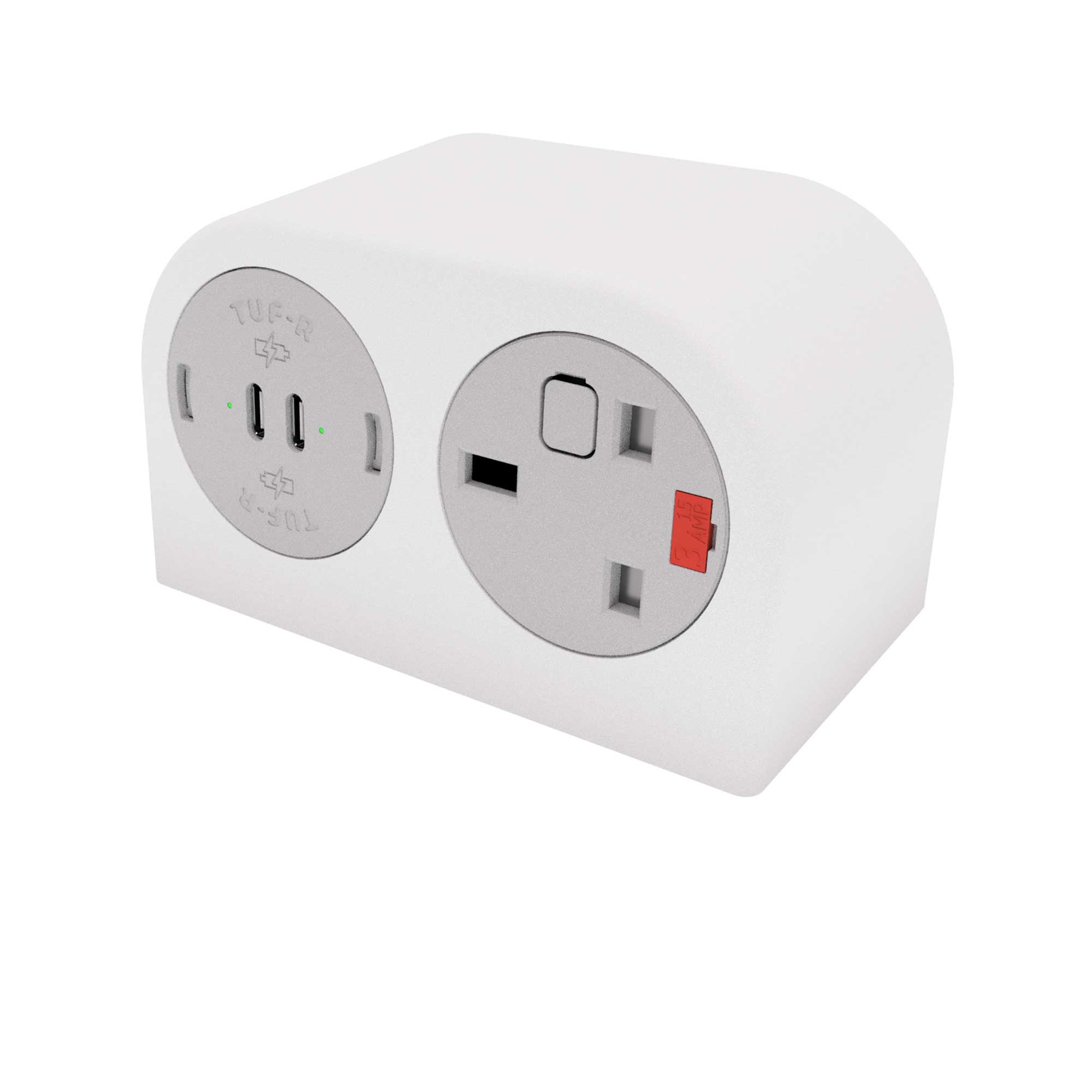

The PRO series features OE’s new replaceable USB cartridge. The PRO TUF-R® 100W is a modular USB-C cartridge designed for fast performance and long-term ease of maintenance. It offers high-power USB charging and can be replaced in seconds to power your workplace.
PRO PHASE can be fitted on or under the surface and is available with either clip or clamp fixing
PRO PHASE comes with 800mm lead to GST18i3 connector. Ensure you have all the cables you require here
If you require quantities of 250 and above, please contact us directly for prices and discounts
Configuration
The PHASE 100W socket aperture may be configured with our global range of AC power sockets from the OE 42mm modular range. PHASE 100W can also be configured with data and/or AV sockets. Through back or through base power and data cable entry options.
Construction
PHASE 100W comprises high-strength and flame retardant polycarbonate main body and back mouldings, plus a nylon slide-on/clip-on universal mounting bracket.
OE snap-in “42mm” modular socket fascias are moulded from polycarbonate. PHASE can also be supplied with custom metal fixings.
Colours
• Body – black or white
• Module fascia – black or grey
• Power cable – white or black
Fusing
(to enable compliance to BS6396)
UK sockets can be specified with 5 x 20mm anti-surge ceramic fuses, with colour-coded fuse clips to denote the rating (3.15A/5A)
Quality and Testing
All PHASE 100W units are manufactured using ISO9001 quality controlled components and practices, and are 100% tested before dispatch
• Visual: Configuration and appearance.
• Power sockets: Continuity, polarity, insulation & earth
• USB charger: Output voltage and resistance
• Data & AV: All sockets continuity tested with batch performance testing
“we test every pin in every socket in every module”
Soft Wiring (power)
Hardwired to either a mains AC plug, or a male Wieland GST connector for “soft wiring” e.g. connection to an under-desk power module or direct to a floor socket via a starter cable.
Compliant with:
BS5733-2010 and IEC60884-1
CE marking:
All units built with UK and European socket types are CE
marked by OE Electric
