QIKFIT UK Power Module

Configuration

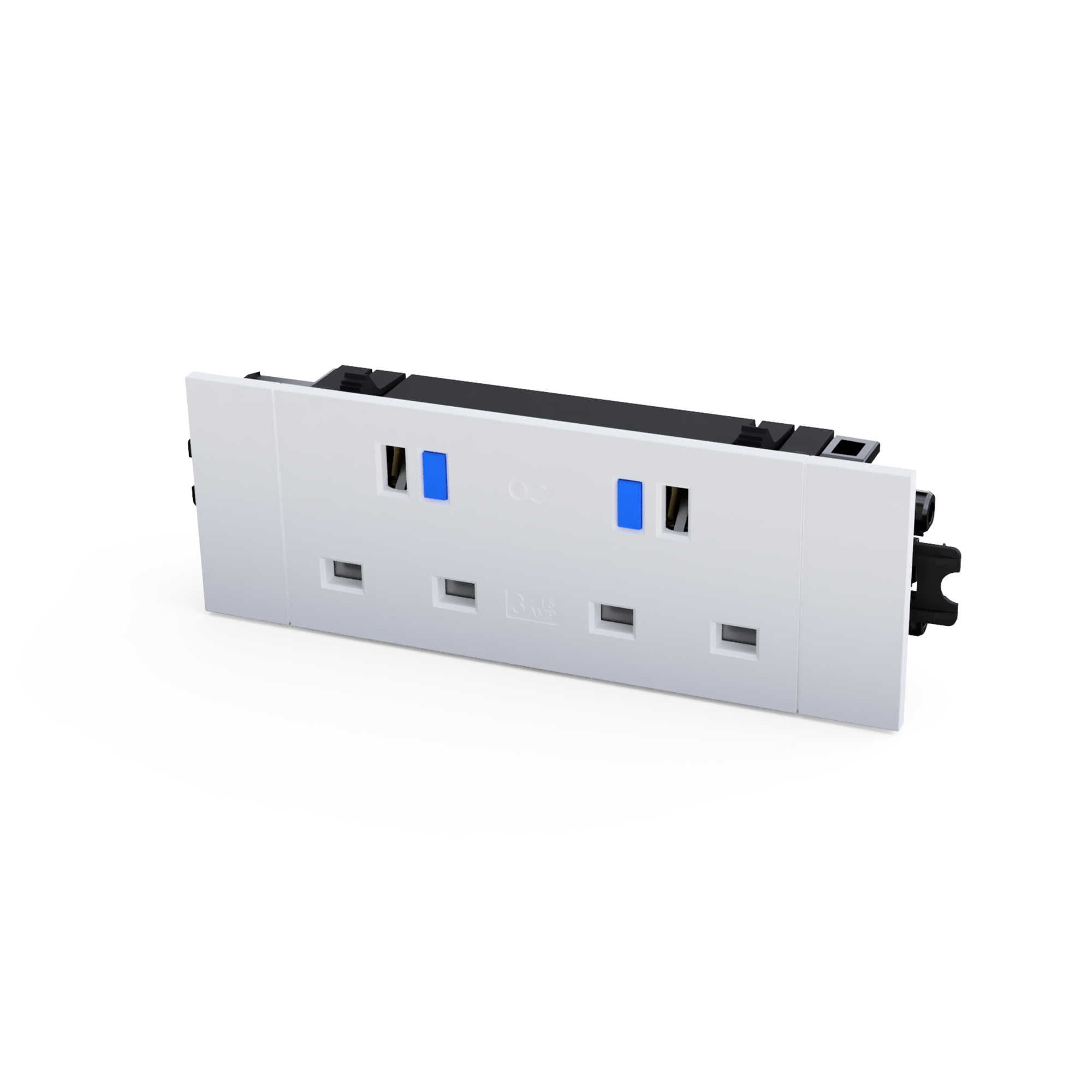

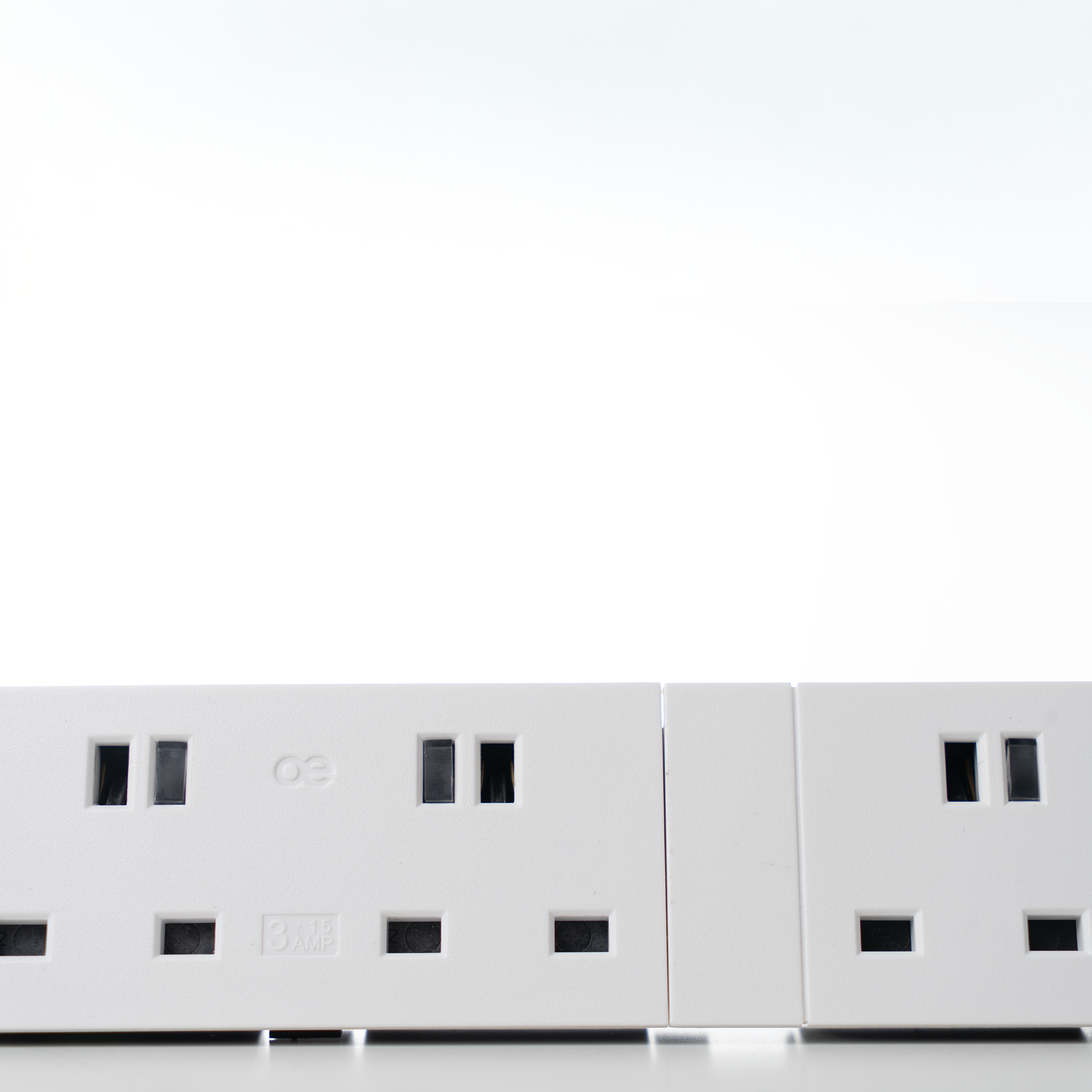

The core component of the QIKFIT modular system is the power socket module. The QIKFIT UK power module has an industry standard GST18i3 power in and power out connectors with locking clips as standard and are available with either white or black socket fascias. QIKFIT power modules can also be integrated with QIKFIT USB charging and Data/AV modules for a complete connectivity solution. The QIKFIT UK Power module is a “2-Gang” unit.

Construction
The QIKFIT UK Power module comprises a high-strength and flame-retardant polycarbonate main body and fascia.

Colours
White or Black.

Fusing
The QIKFIT UK Power module features a resettable thermal fuse with a rating of 3.15A. Should a socket trip, unplug the device that caused the trip, and press in the blue indicator button to reset. Please note that it may take a few minutes for the thermal fuse to cool down before it can reset.

Quality and Testing
All QIKFIT UK units are manufactured using ISO9001 quality controlled components and practices, and are 100% tested before dispatch
Visual: Configuration and appearance.

Power sockets
Continuity, polarity, insulation & earth
USB charger: Output voltage and resistance
Data & AV: All sockets continuity tested with batch performance testing “we test every pin in every socket in every module”.

Soft Wiring (power)
Hardwired to either a mains AC plug, or a male Wieland GST connector for “soft wiring” e.g. connection to an under-desk power module or direct to a floor socket via a starter cable.
