TUF-R Replacement Module

If the TUF-R in your OE unit has become damaged during use, did you know that you can change the TUF without replacing the whole unit? Order the relevant TUF for your unit, and the corresponding TUF-R Tool to replace the TUF in under two minutes, without needing an electrician.

SKU N/A Category USB Power Brand: TUF

TUF Varient

Clear

Don't forget to add cables to your quote

essential addition

If you require quantities of 250 and above, please contact us directly for prices and discounts

Technical Information

Construction

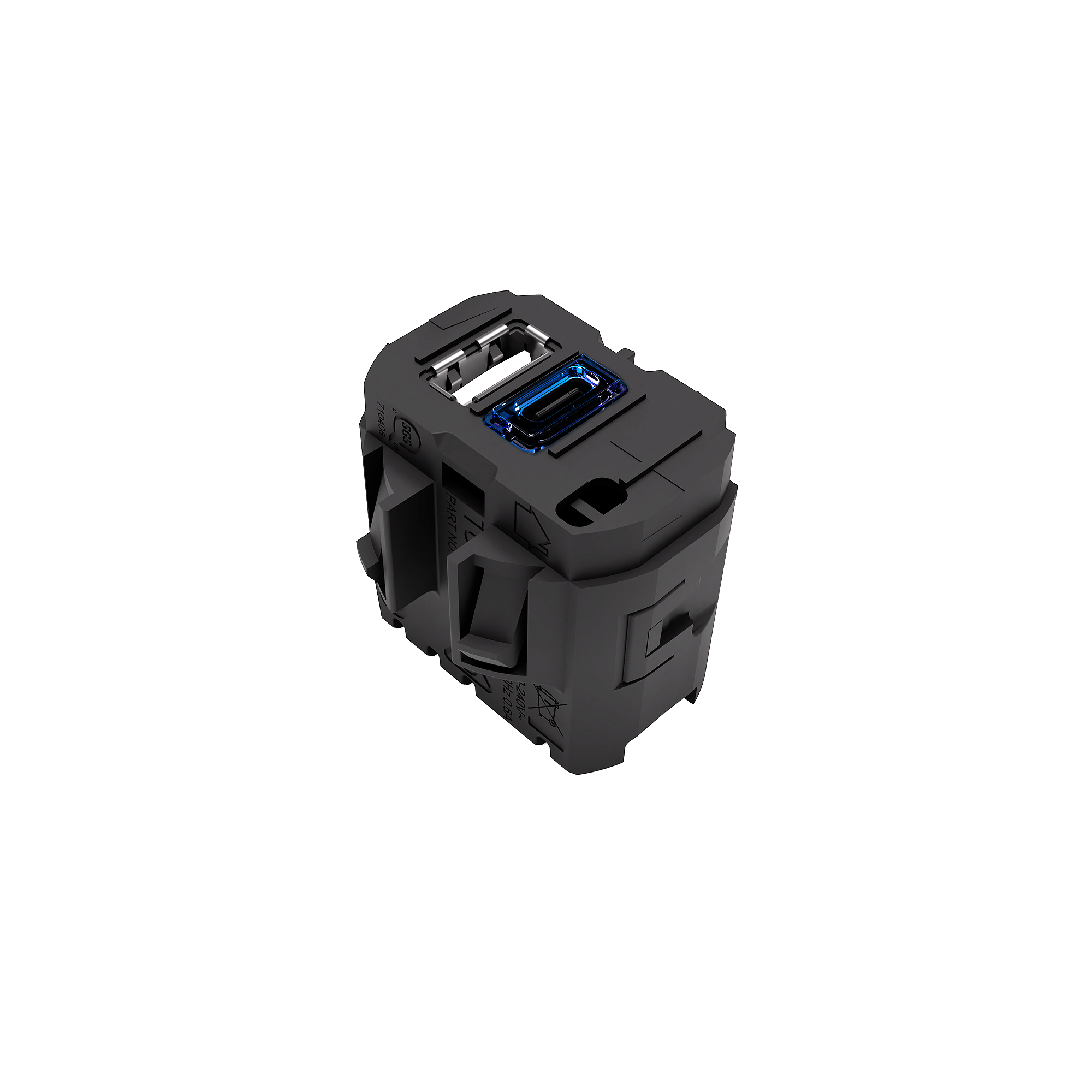

TUF-R replacement Modules are housed in fire-retardant polycarbonate. They feature LED power indicator, internal overload protection, and are independently tested to over 10,000 USB insertions/withdrawals.

Colours

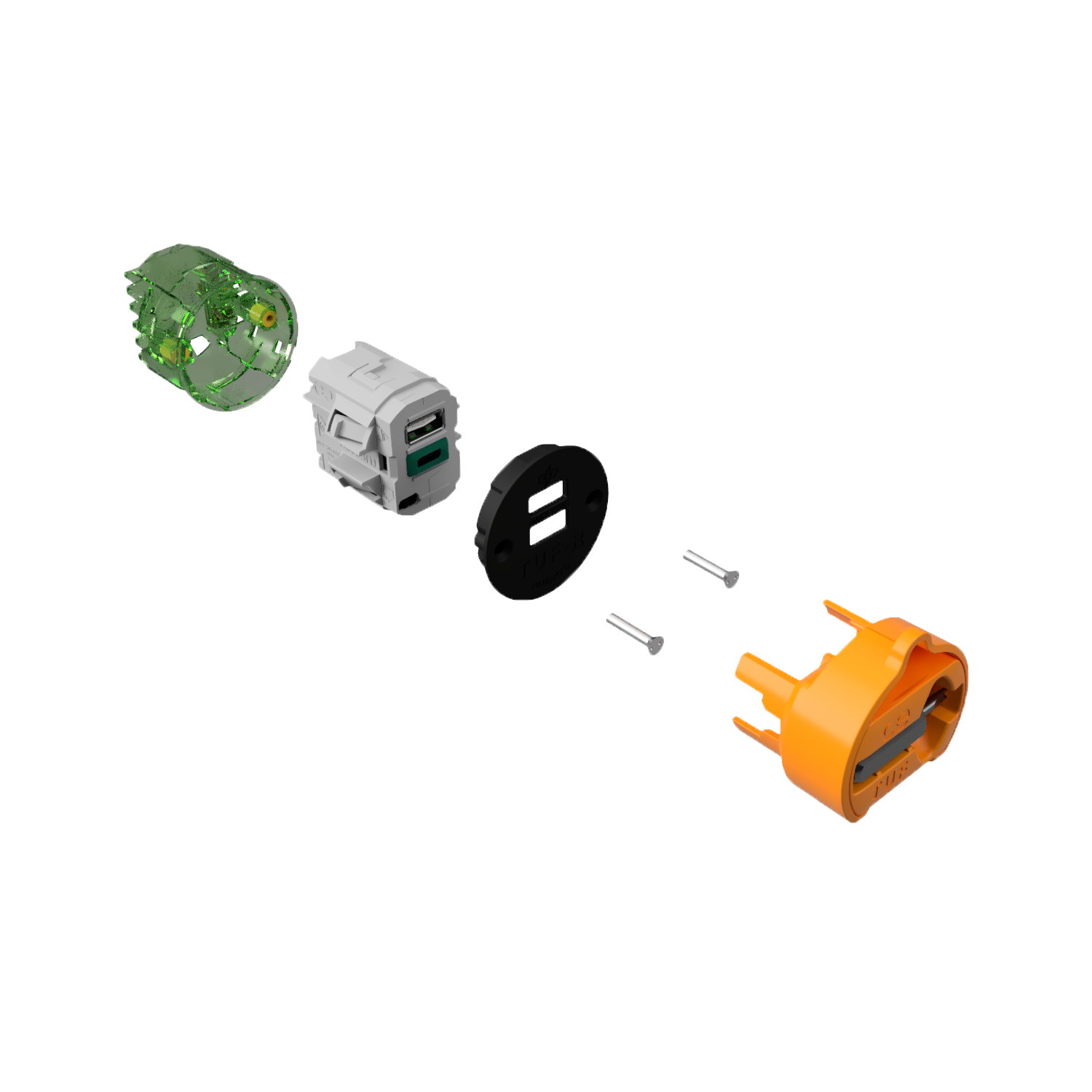

Colours play an important role in both TUF recognition and compatibility. TUF-R Replacement Modules are either black (AC input) or grey (DC input), and can only be replaced with a TUF-R module of the same colour. Additionally, the canister into which the TUF-R is inserted is either blue or green. A grey TUF-R (DC input) can only be inserted into a green canister, and a black TUF-R (AC input) can only be inserted into a blue canister.

Quality and Testing
All TUF-R Replacement Modules units are manufactured using ISO9001 quality-controlled components and practices and are 100% tested before dispatch
Visual: Configuration and appearance.

Power sockets
Continuity, polarity, insulation & earth
USB charger: Output voltage and resistance
Data & AV: All sockets continuity tested with batch performance testing “we test every pin in every socket in every module”.

Dimensions
