TUF-R TOOL

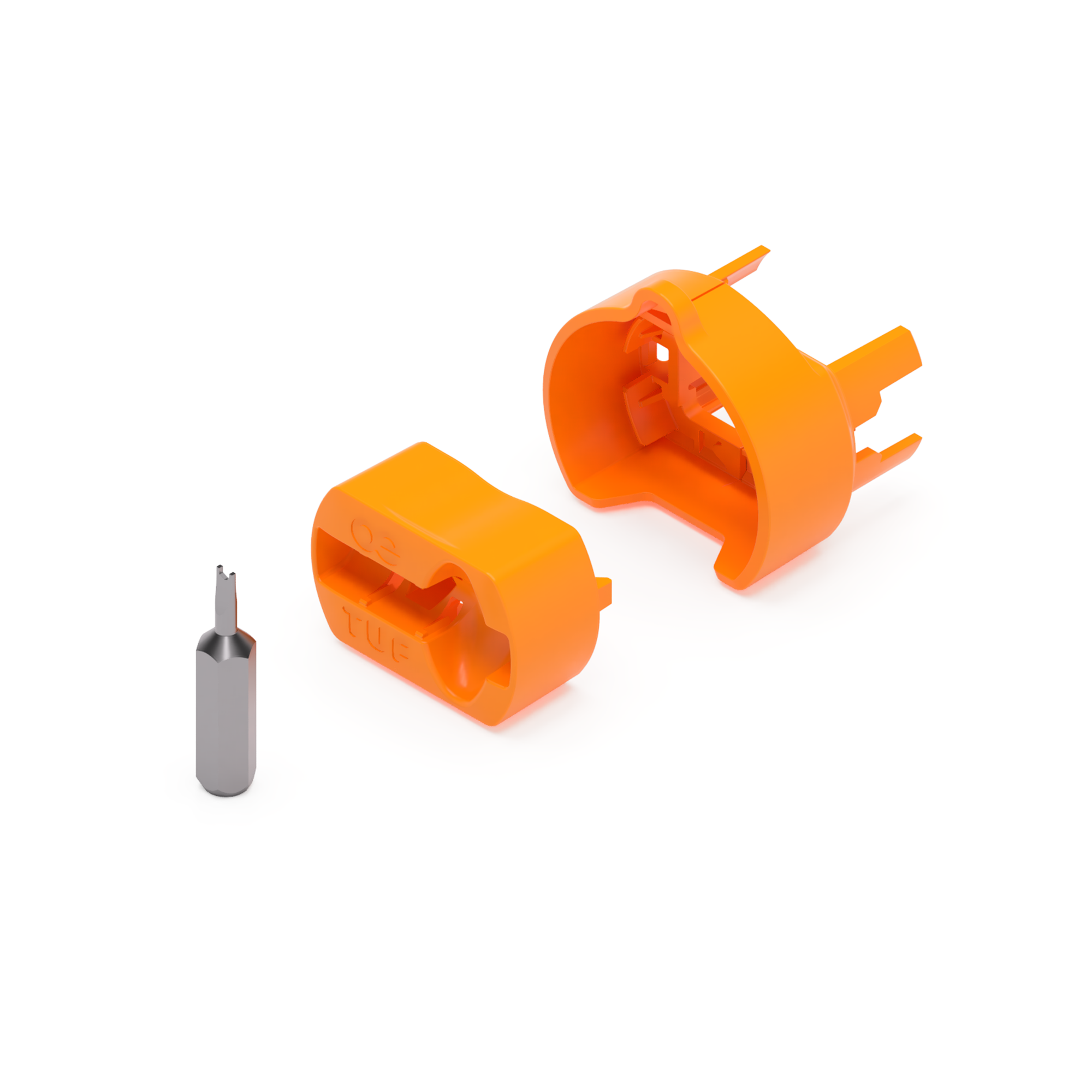

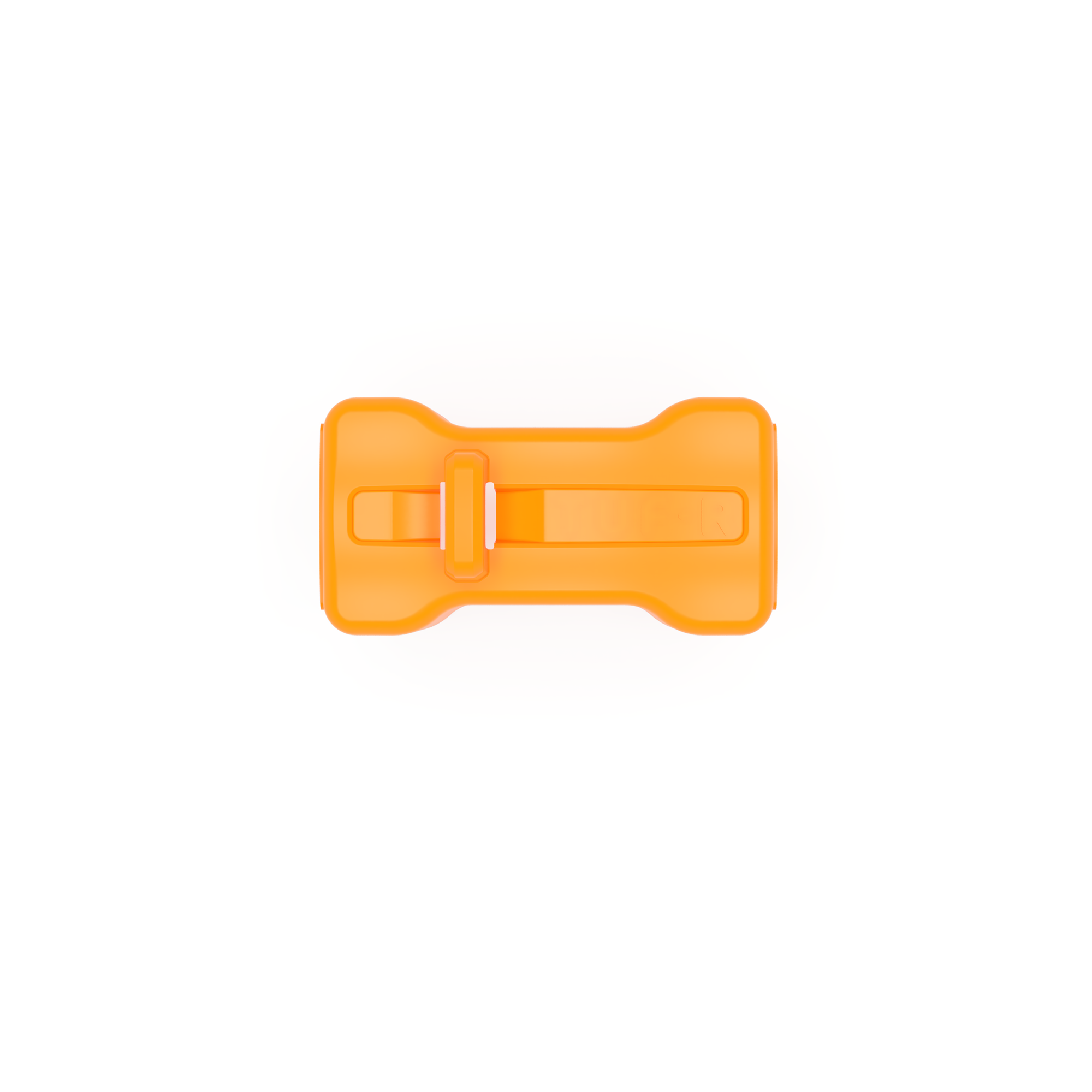

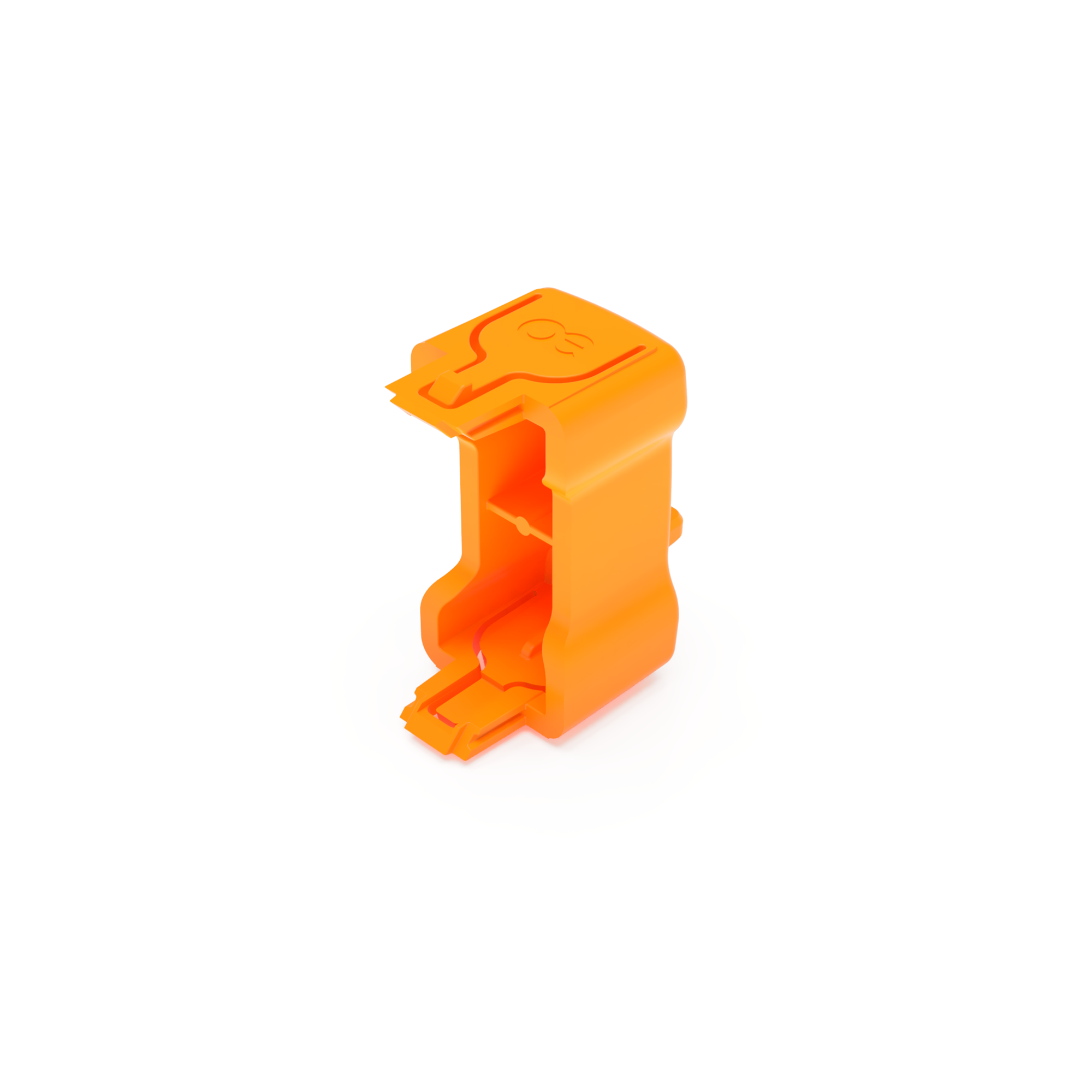

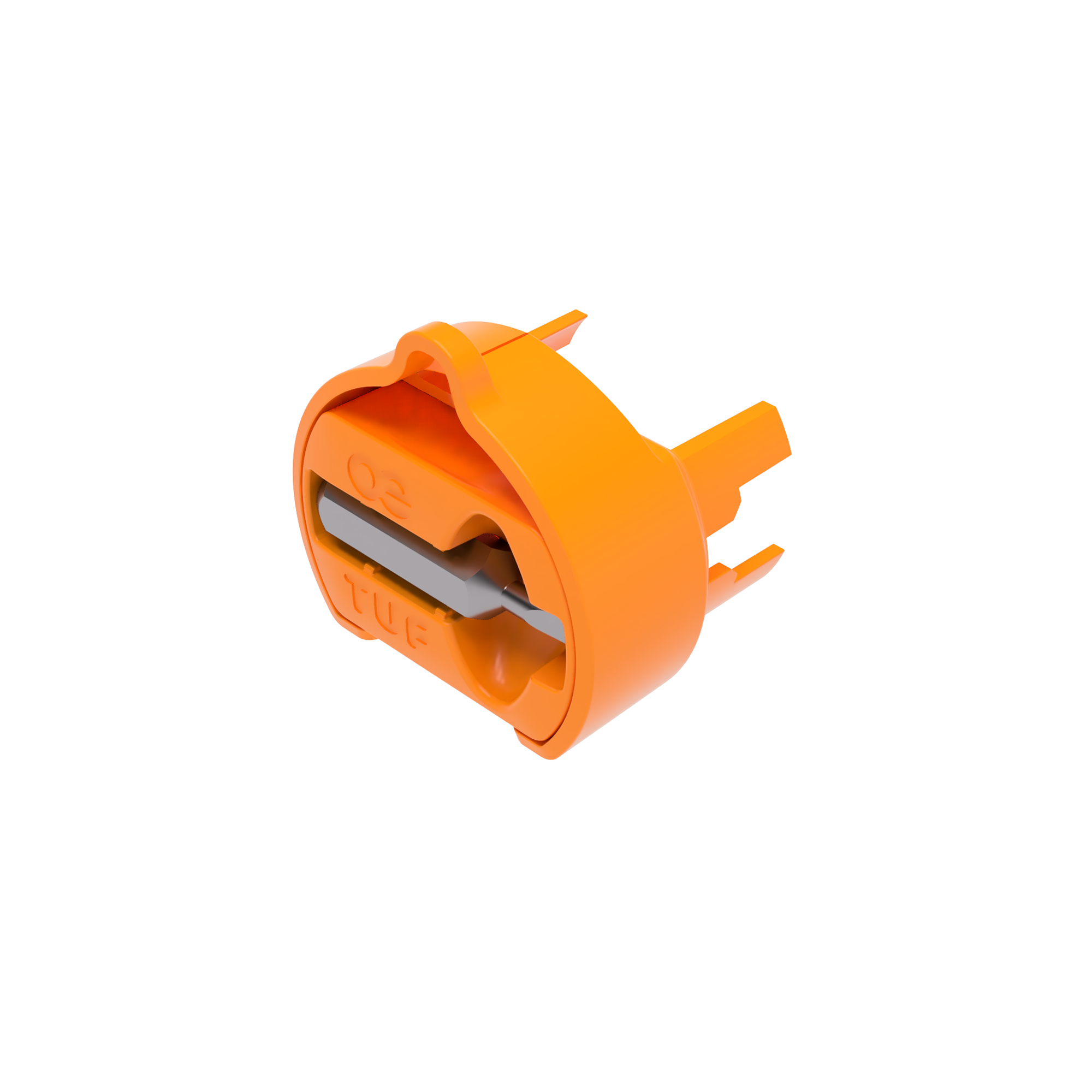

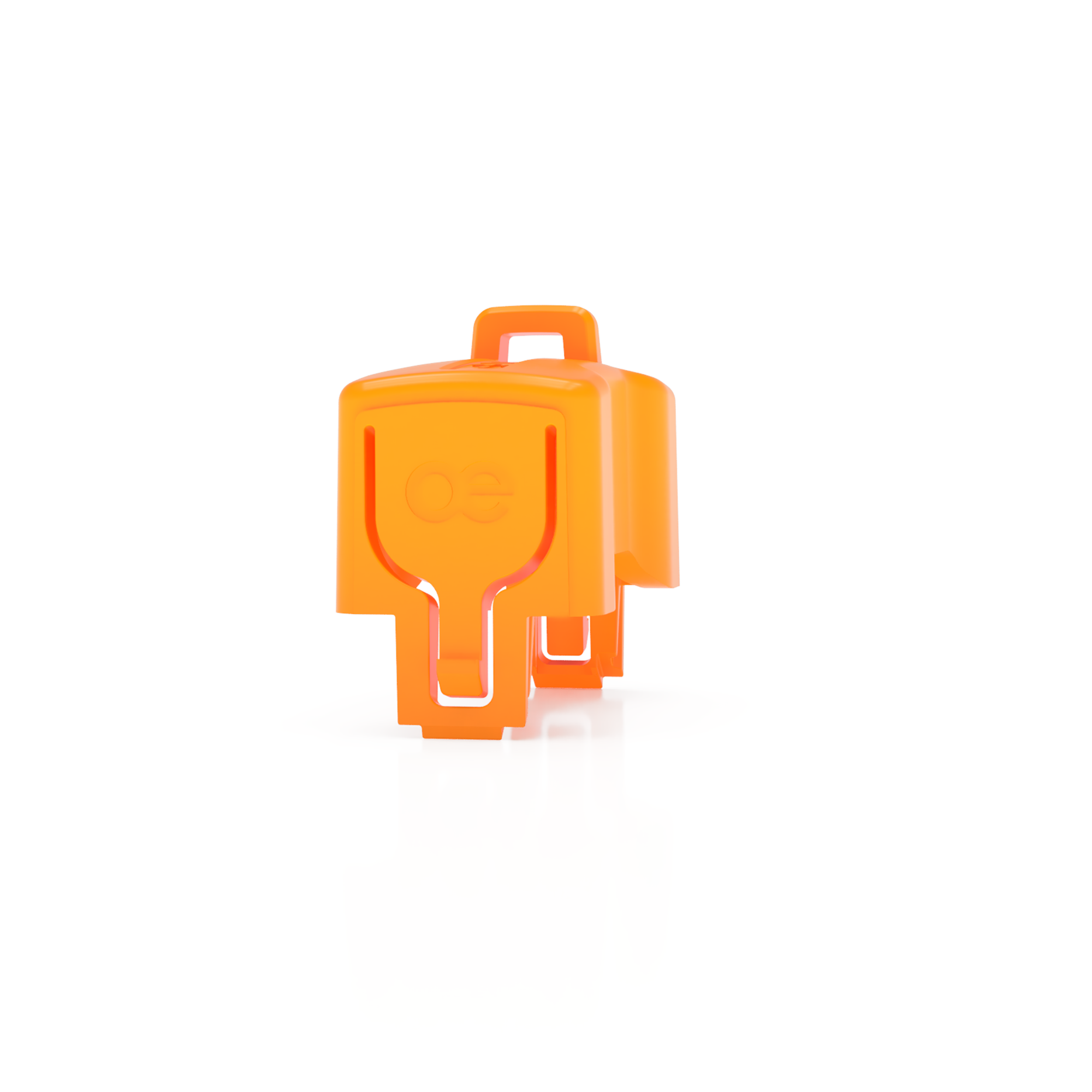

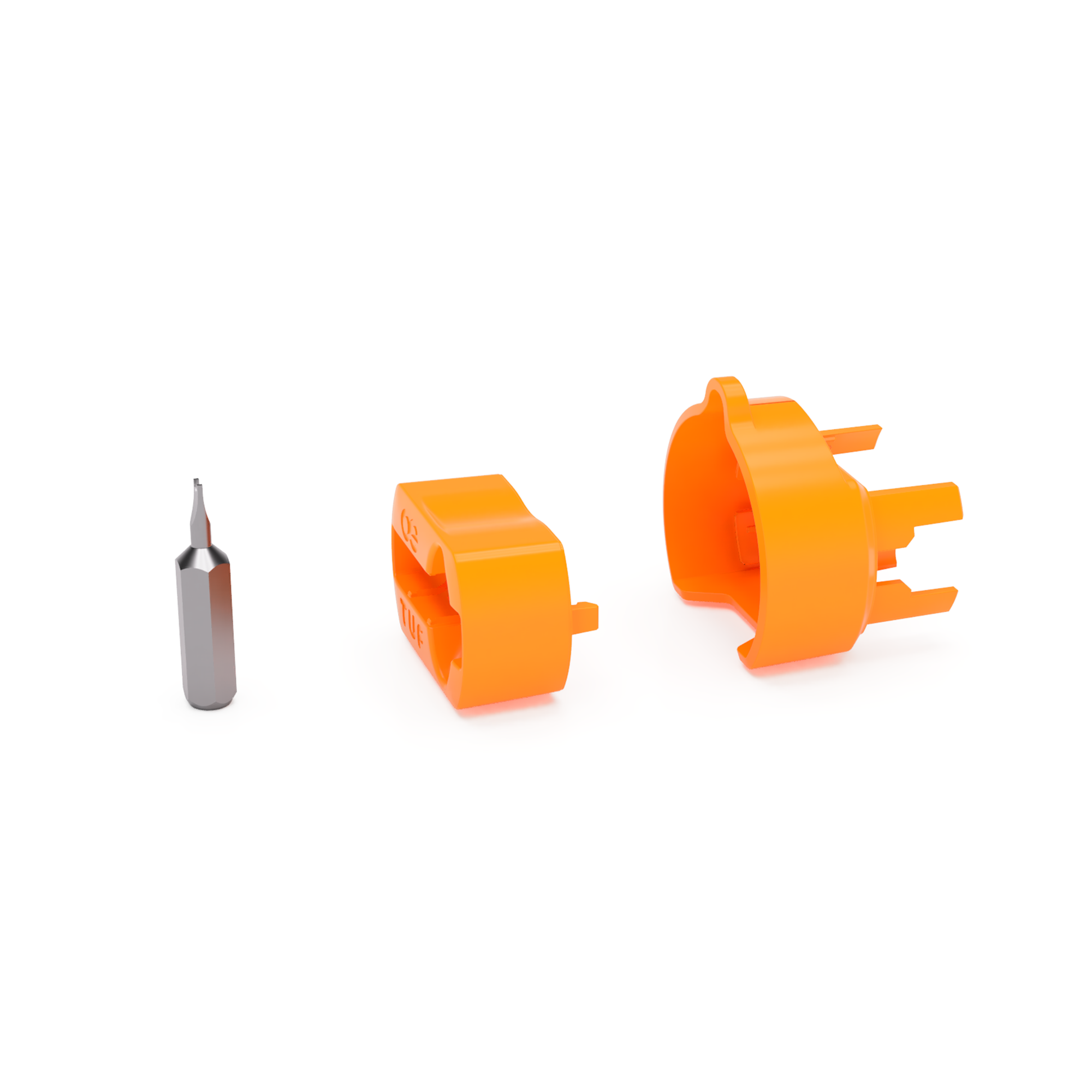

The TUF-R USB Charger comes in two formats: The standard round TUF and the rectangular QIKFIT TUF. Each TUF requires its own tool for removal/replacement.

SKU N/A Categories , Brand:
Register or Login
Add to Wishlist
Click here to add your cables
essential addition
Instructions

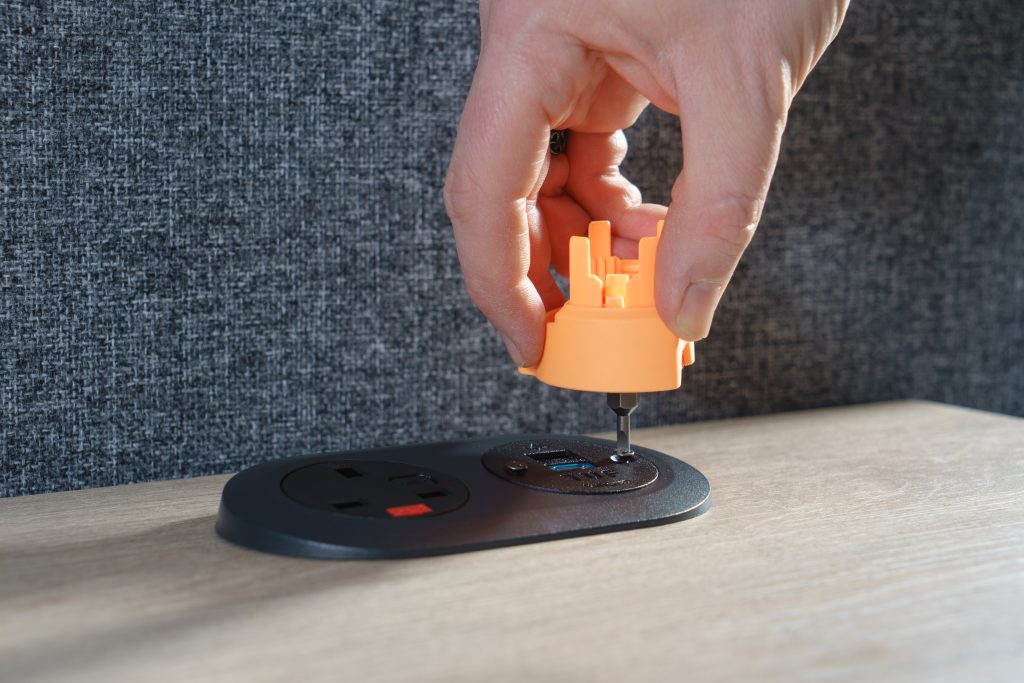

Use the snake-eye tool to remove both snake-eye screws

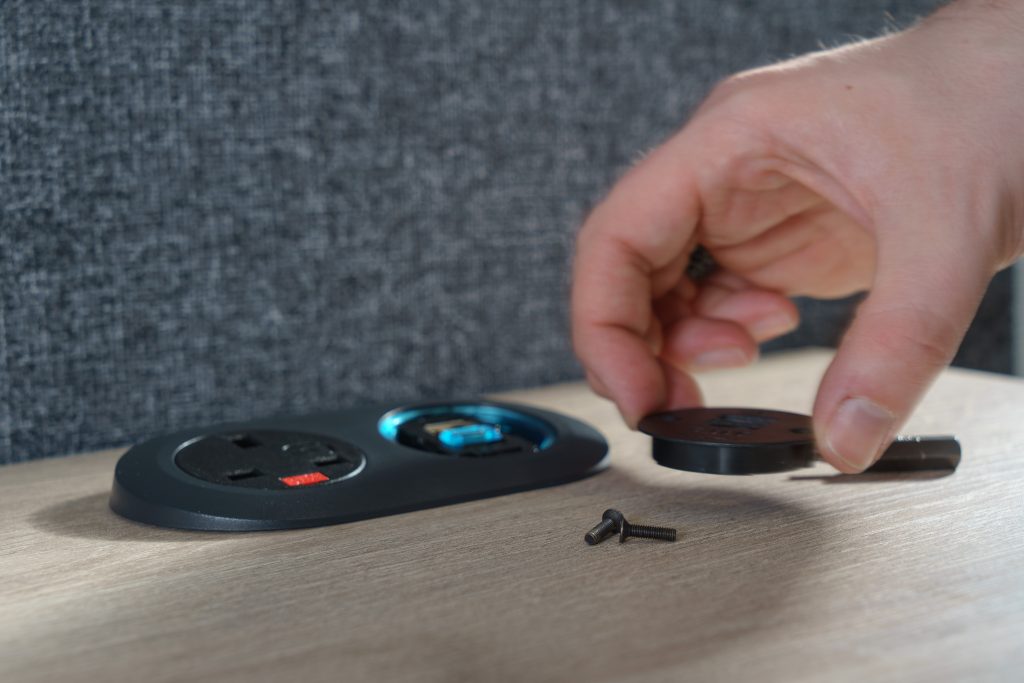

Remove the fascia of the TUF and put to one side

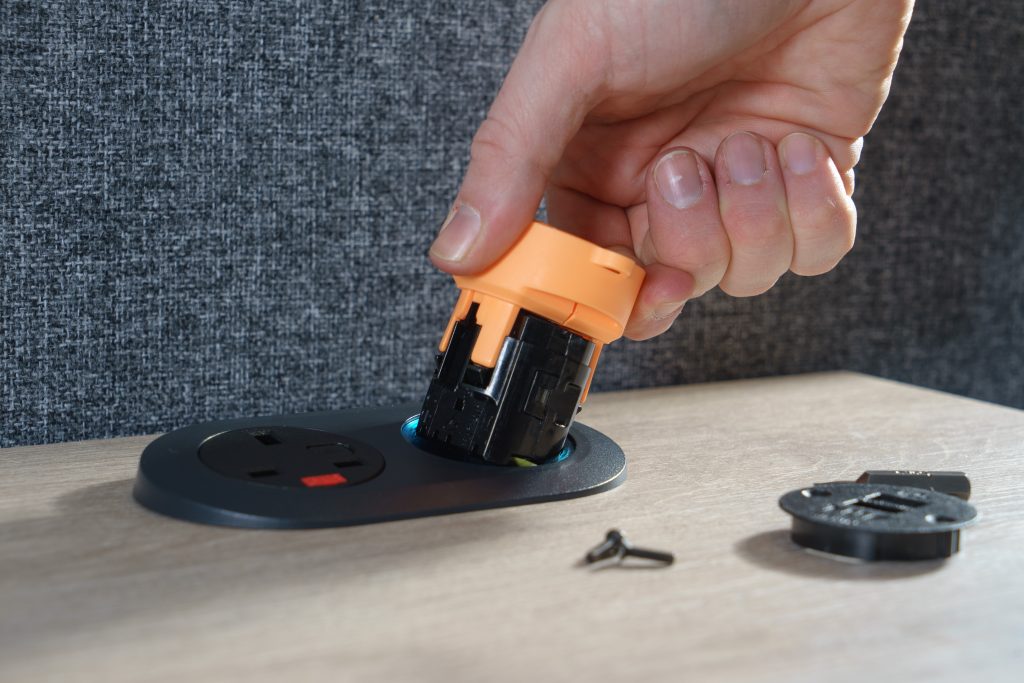

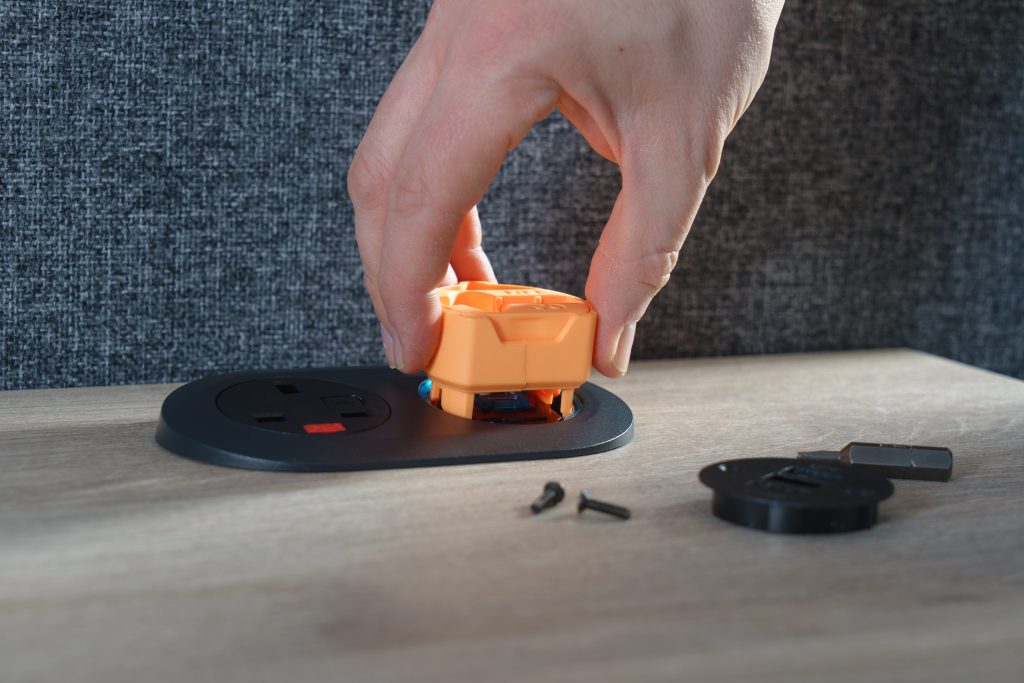

Press the tool into the TUF canister as shown. The TUF will attach to the tool
Pull the tool and attached TUF out of the canister. Dispose of responsibly.

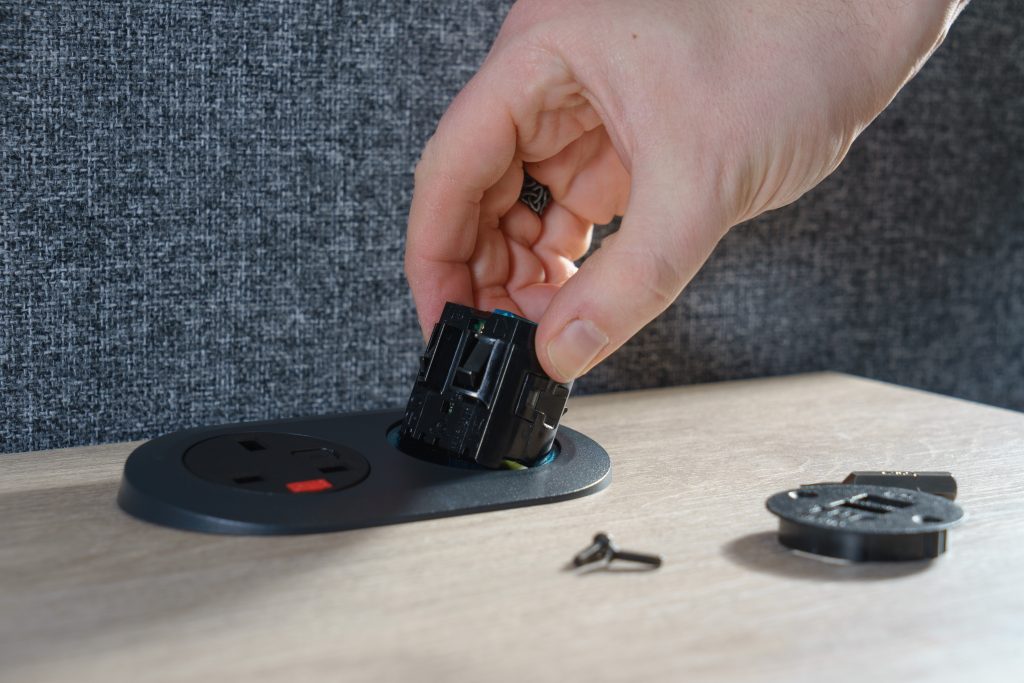

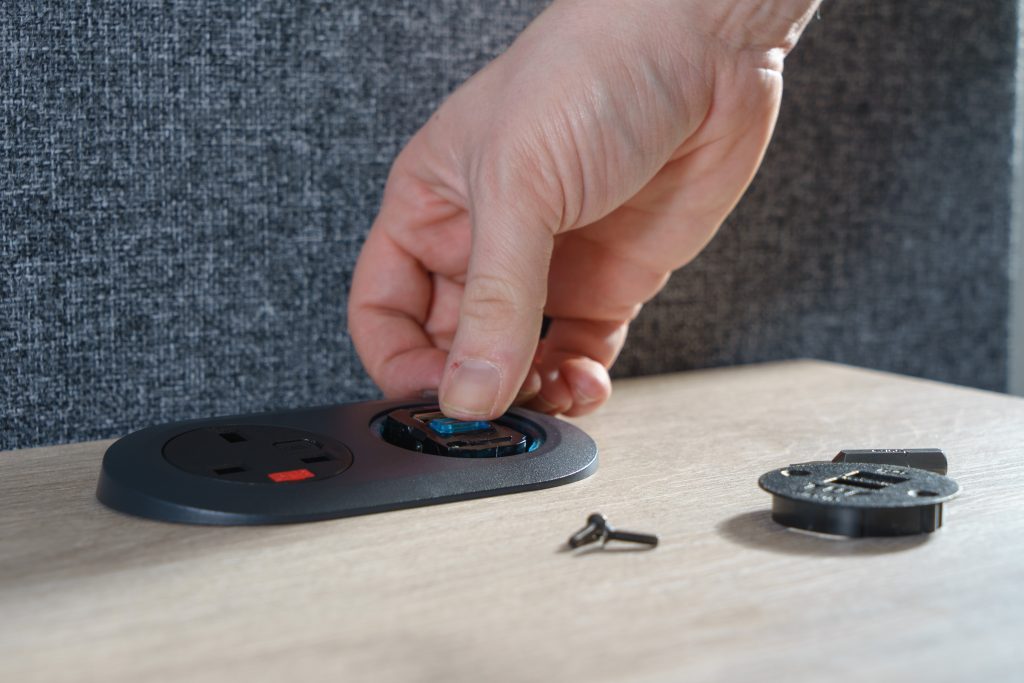

Insert the new TUF into the canister. It will only fit one way.
Make sure the TUF is fully pressed into the canister
Replace the fascia over the TUF and replace the two screws
Tighten the screws until resistance is felt, but do not over-tighten.
